OC-S10
$ 2,992.00 £ 2,450.00 € 2.650,00

A MASTERPIECE OF SOUND

Reference Recording Microphone

  • Free shipping
  • Up to 5 years warranty
  • Secure payment method

Discover Excellence.

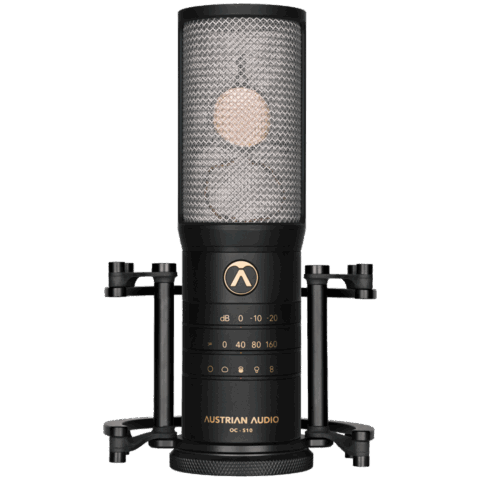

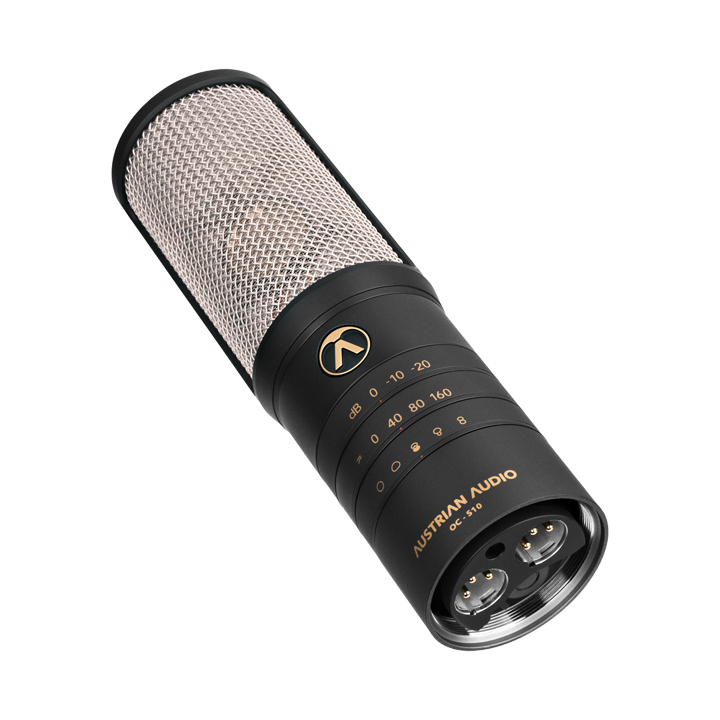

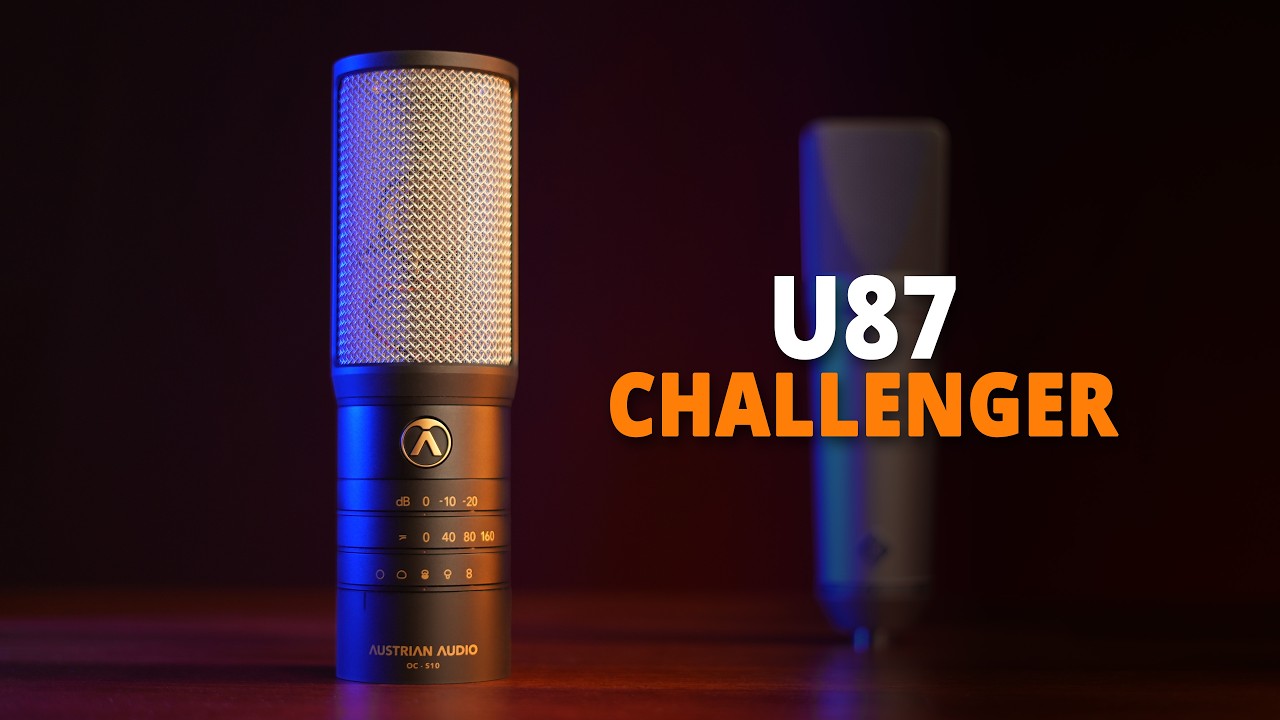

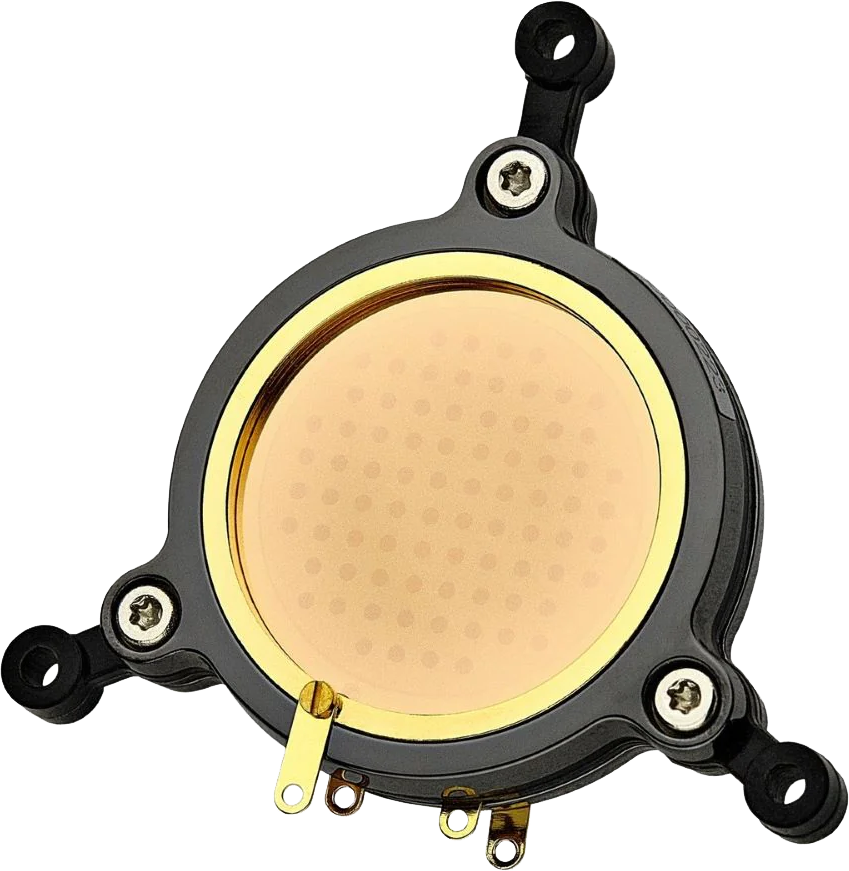

The OC-S10 is a reference large-diaphragm condenser microphone, meticulously designed for recording lead vocals and solo instruments with unparalleled precision. With five selectable polar patterns, three low-cut filter options, and switchable -10dB and -20dB pads, the OC-S10 offers exceptional versatility to suit any recording scenario. In combination with the dual-output feature (both standard XLR) it provides maximum post-production flexibility, ensuring you can discover and craft your perfect sound.

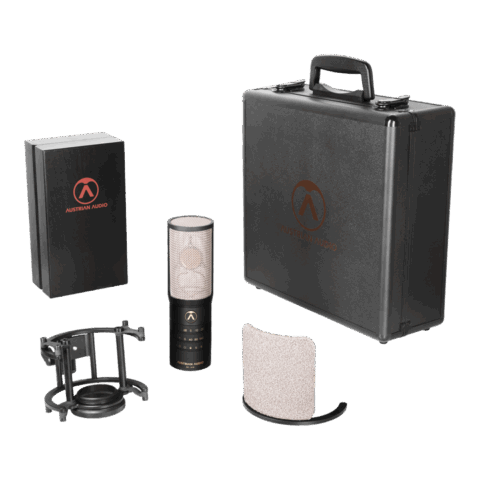

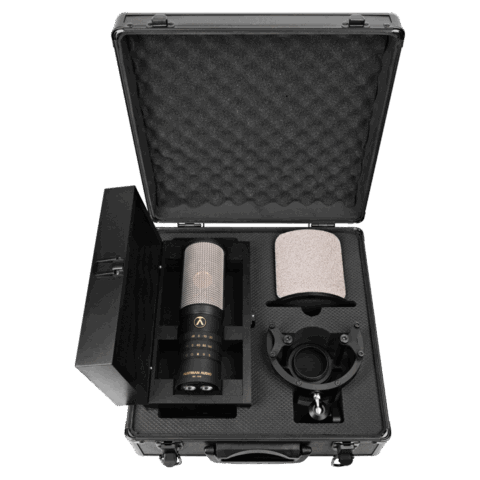

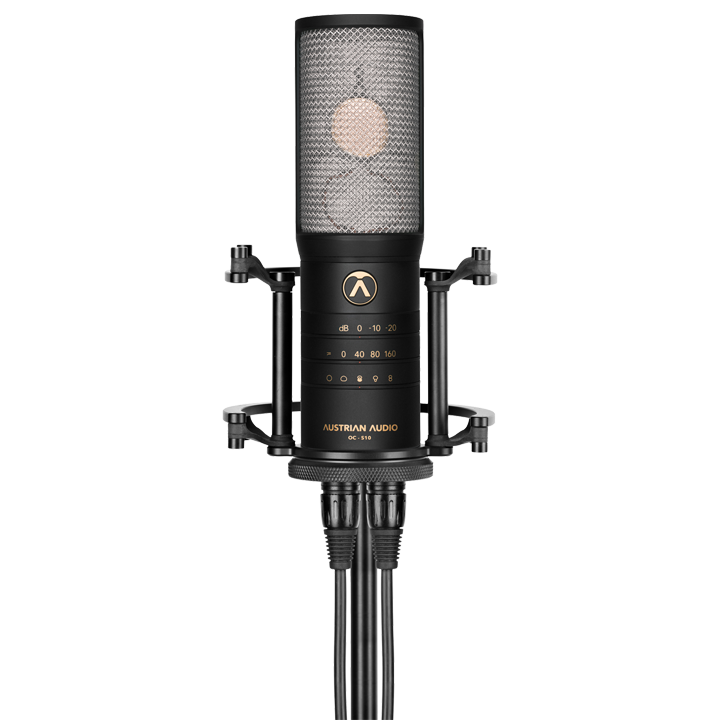

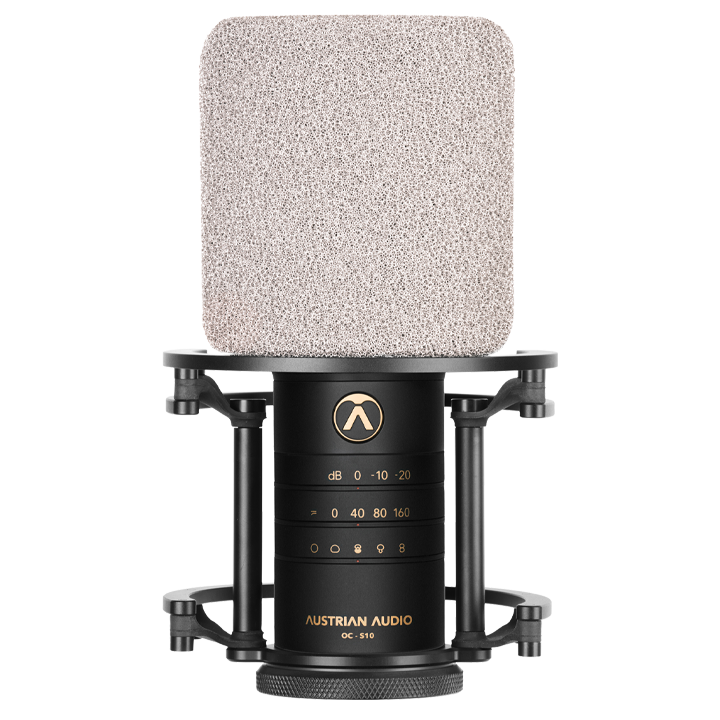

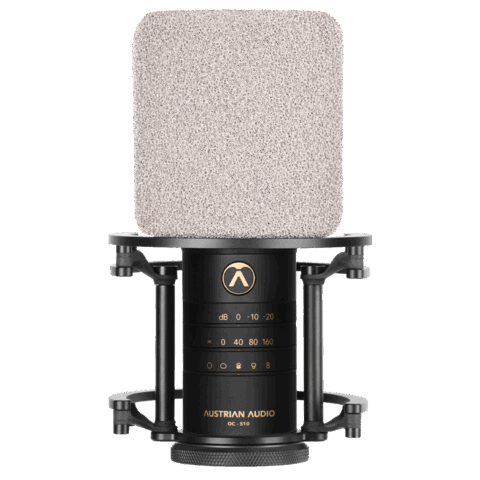

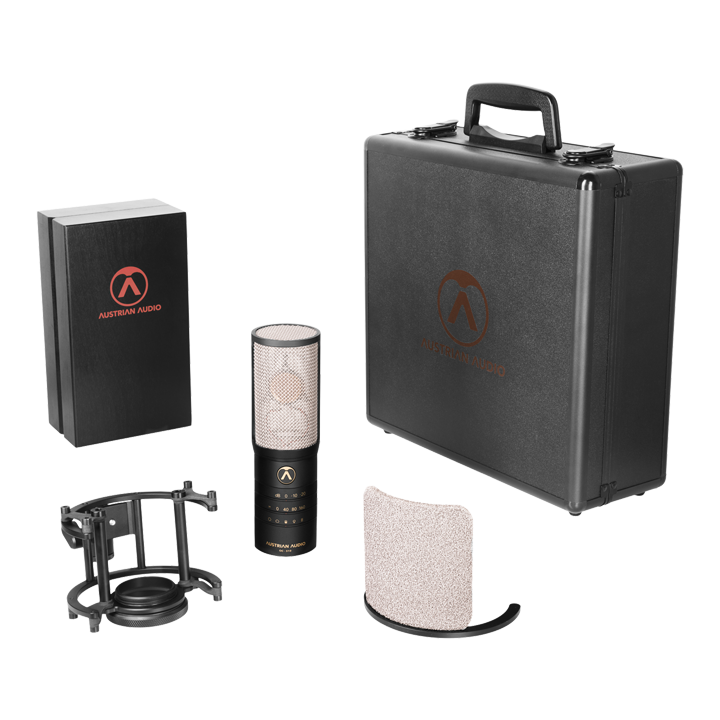

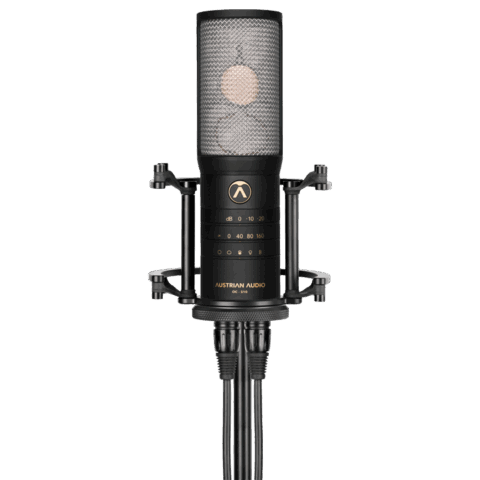

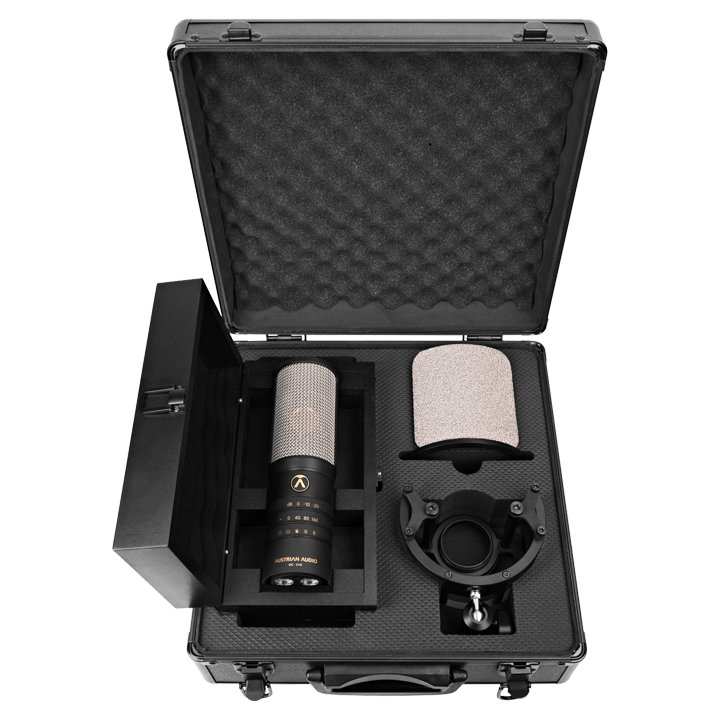

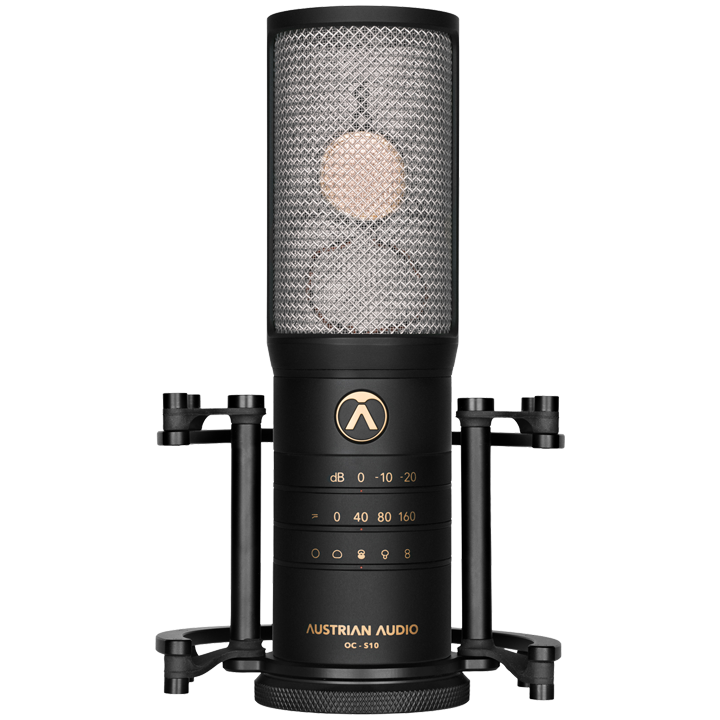

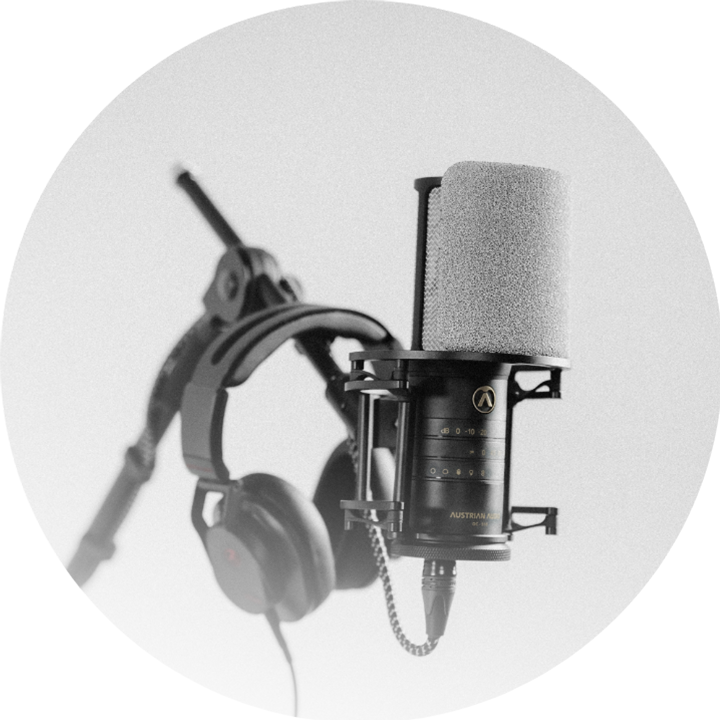

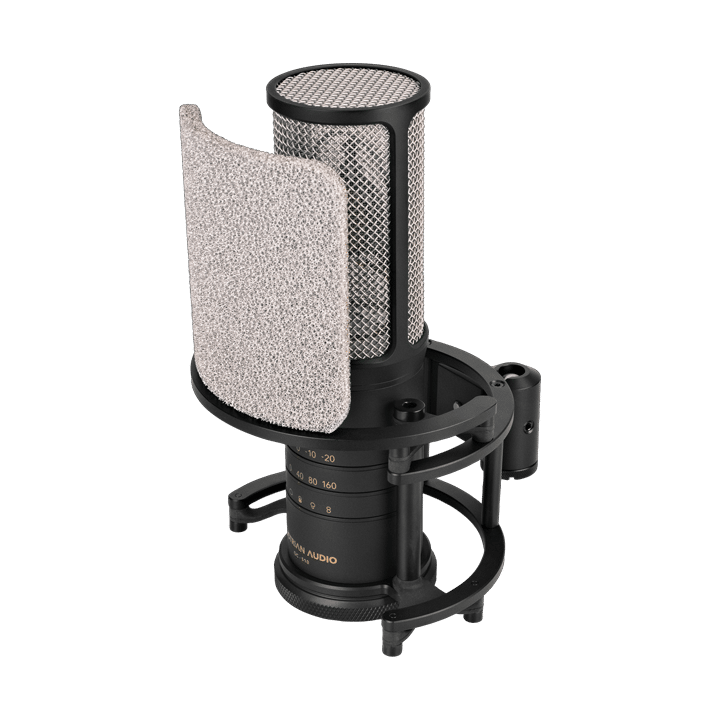

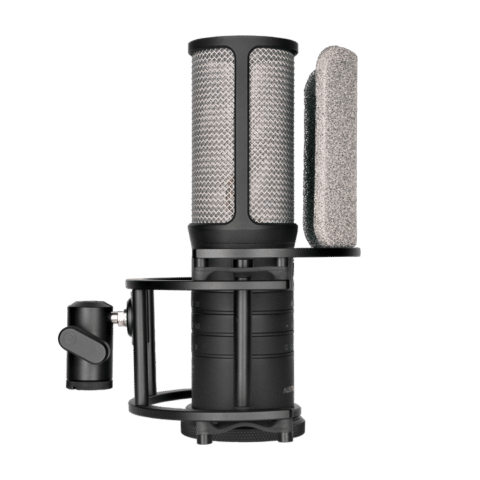

The included shock mount features a ball-joint connection for precise and delicate positioning, making setup effortless. Additionally, the magnetically attached metal mesh filter (not shown) effectively reduces unwanted plosive sounds while preserving the full richness and detail of the vocal spectrum.

Made in Vienna / Austria.

More information soon – stay tuned!

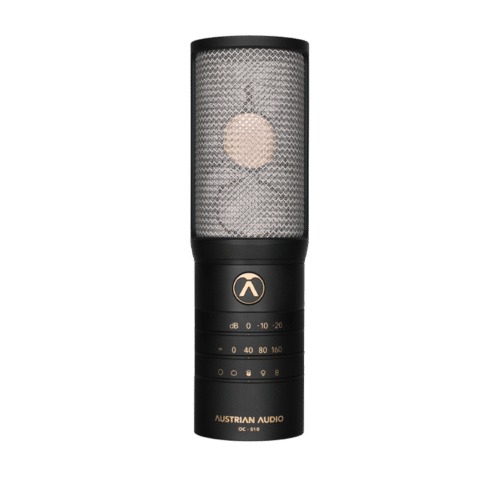

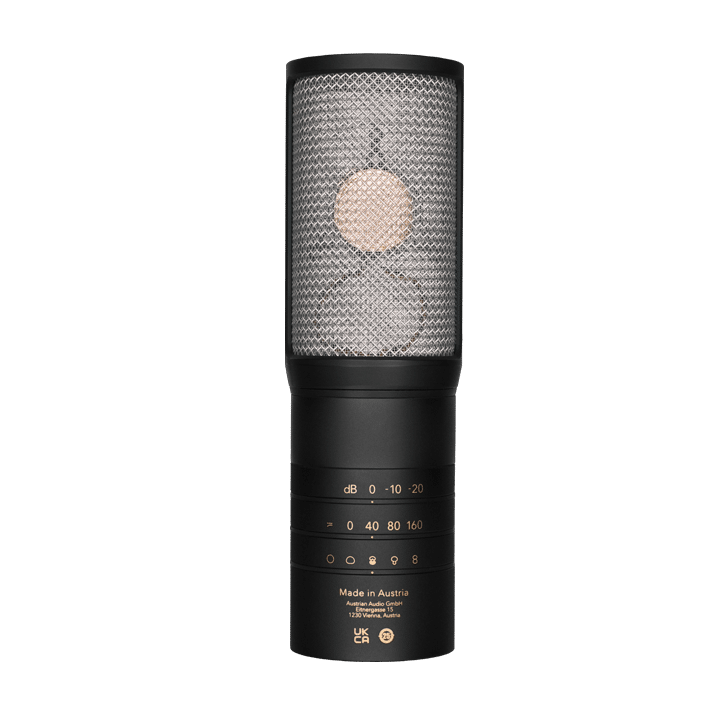

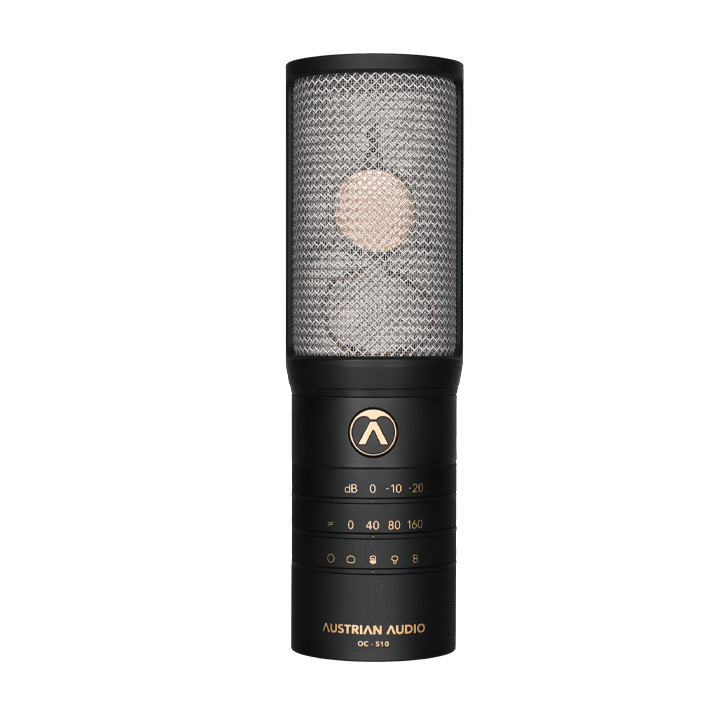

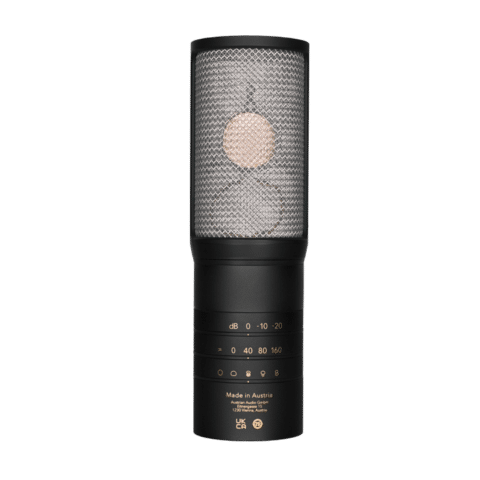

OC-S10 Reference Recording Microphone

Technical Specifications

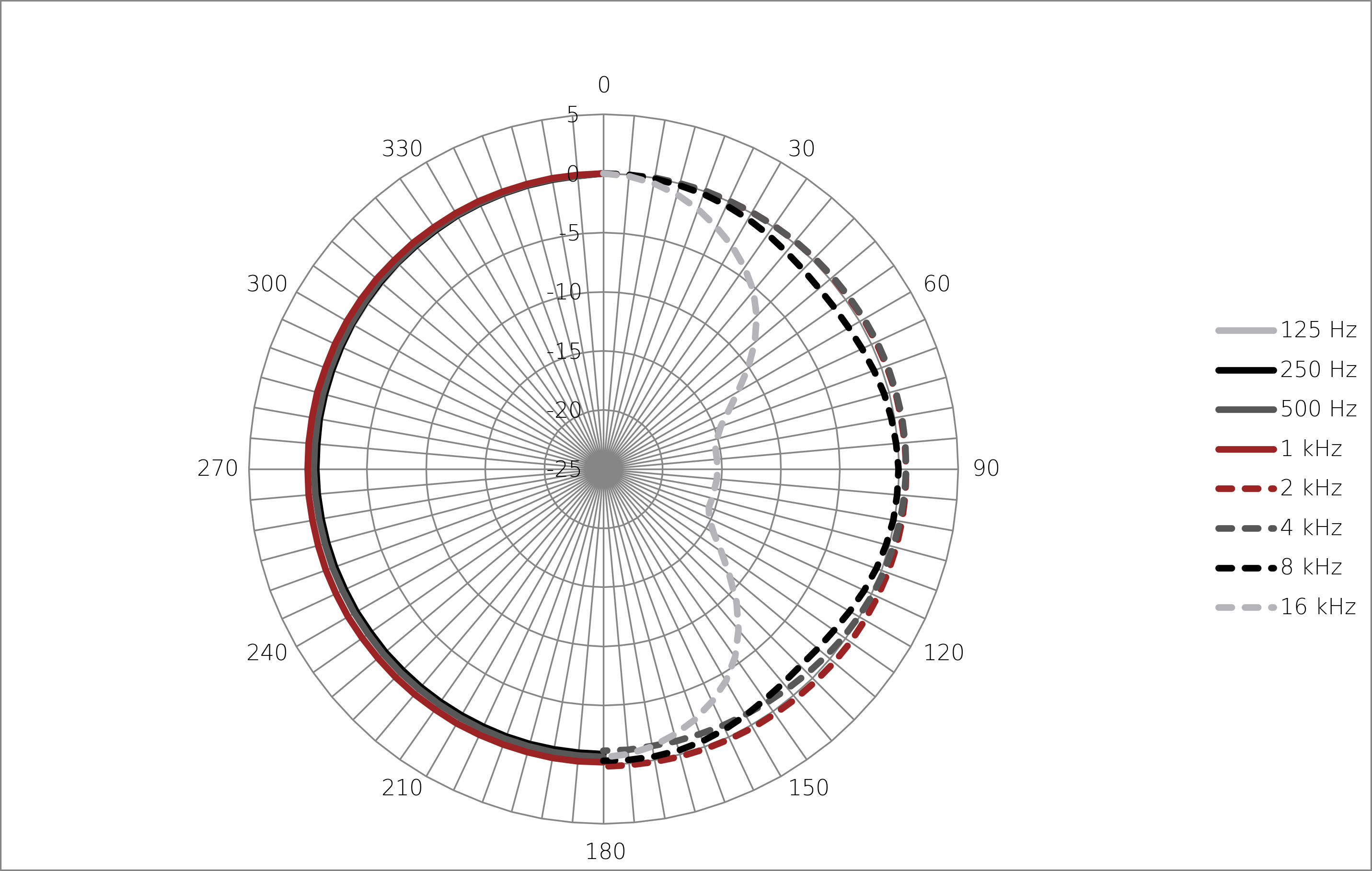

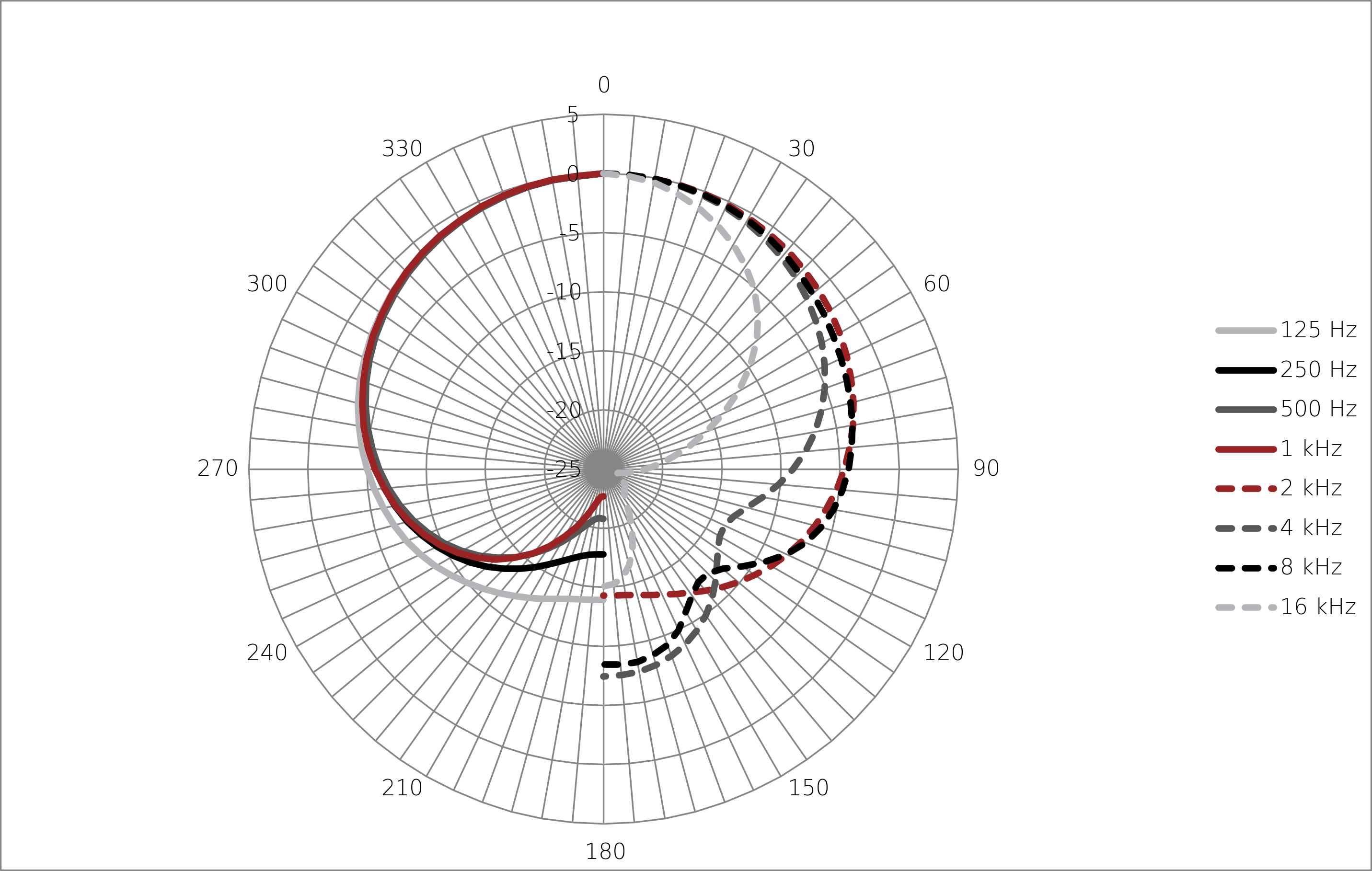

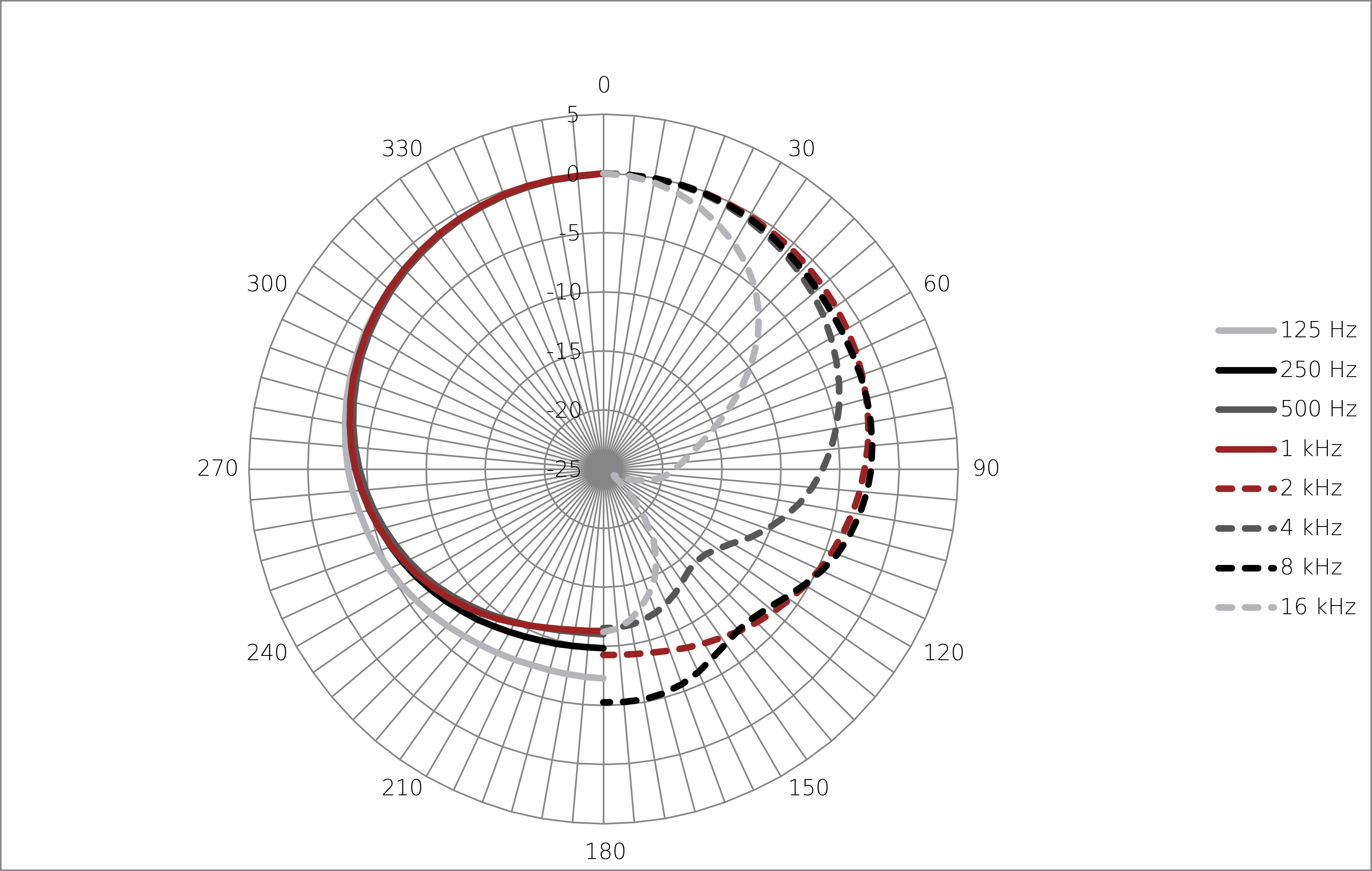

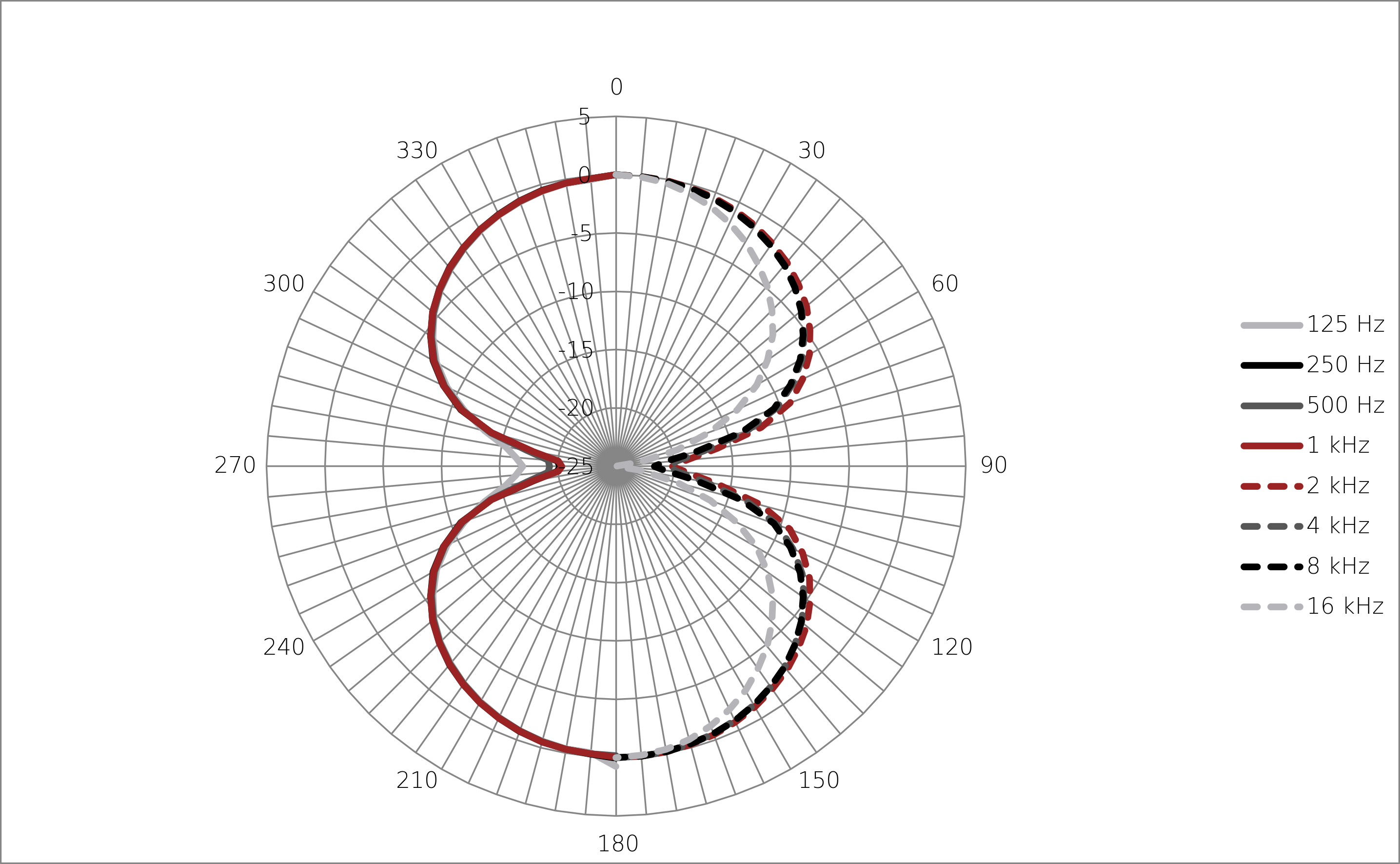

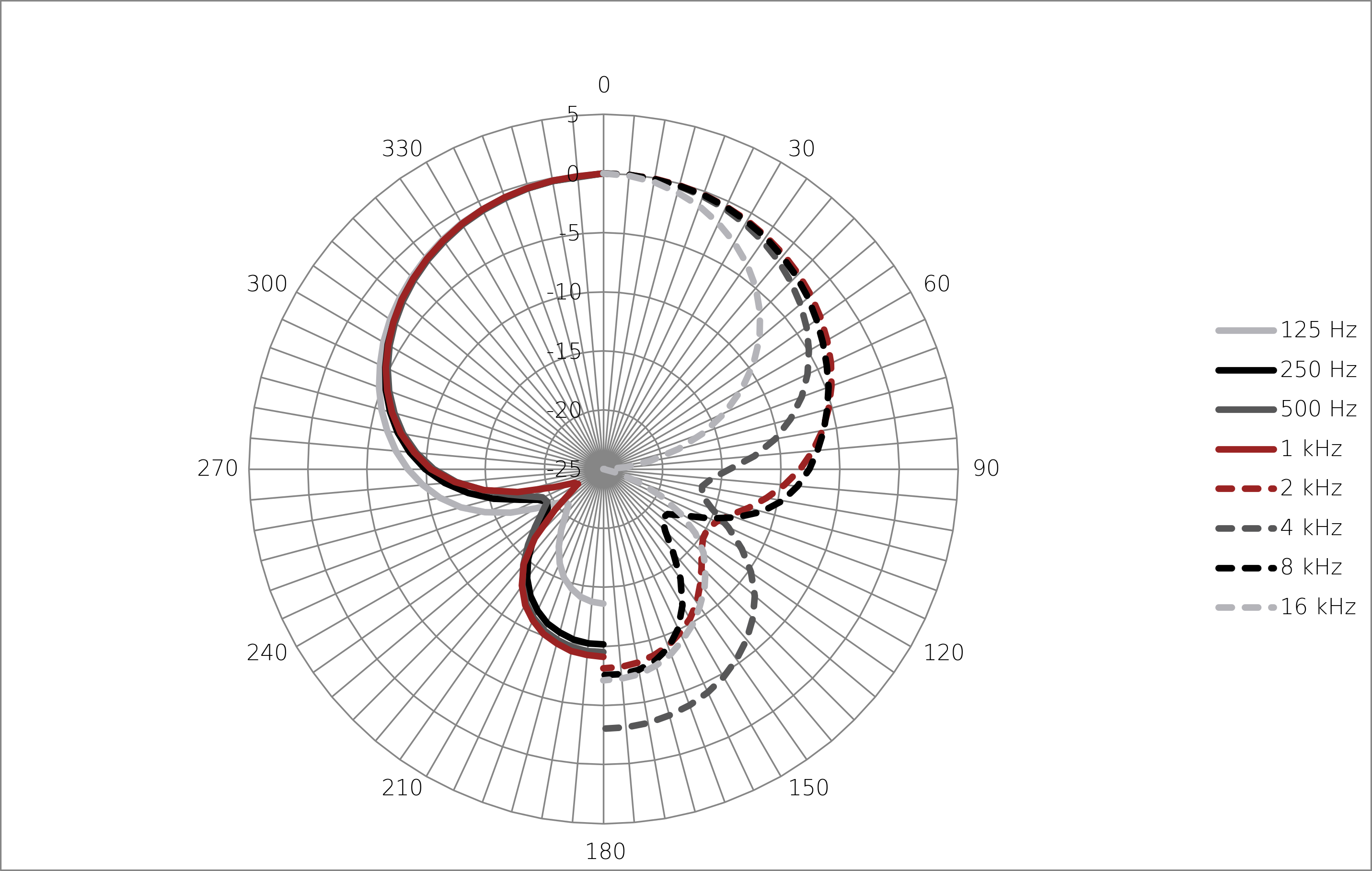

  • Directional characteristic (Multi) Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-of-Eight

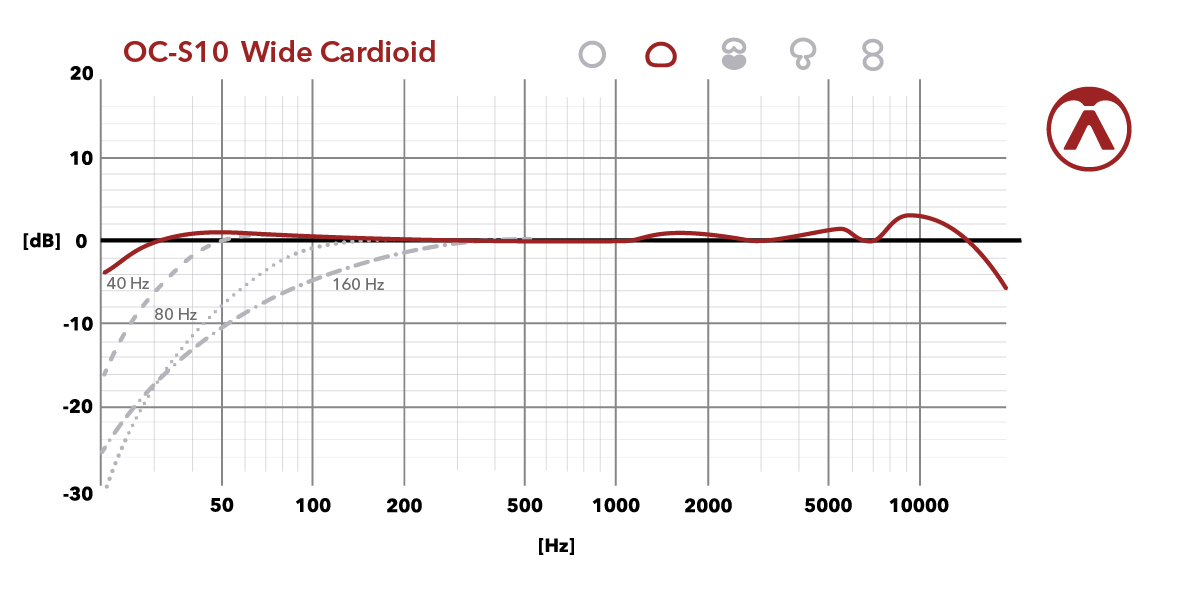

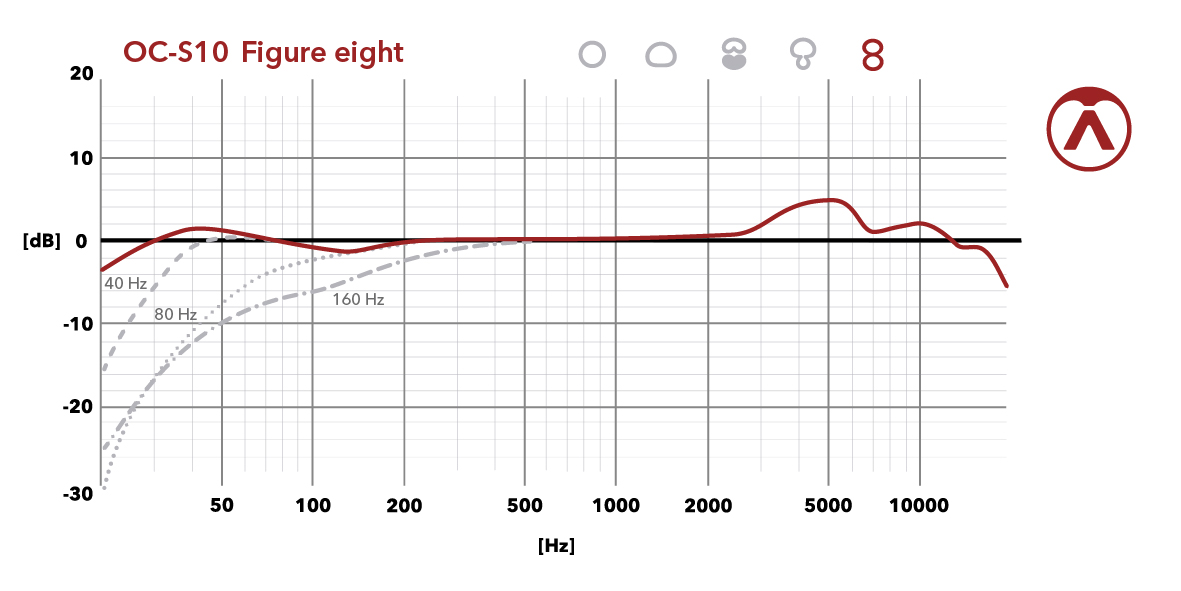

  • Frequency range 20 Hz - 20 kHz
  • Sensitivity (all directions) 14 mV/Pa
  • Equivalent noise level 8 dB SPL (A)
  • Max SPL 147 dB SPL (157 dB SPL)

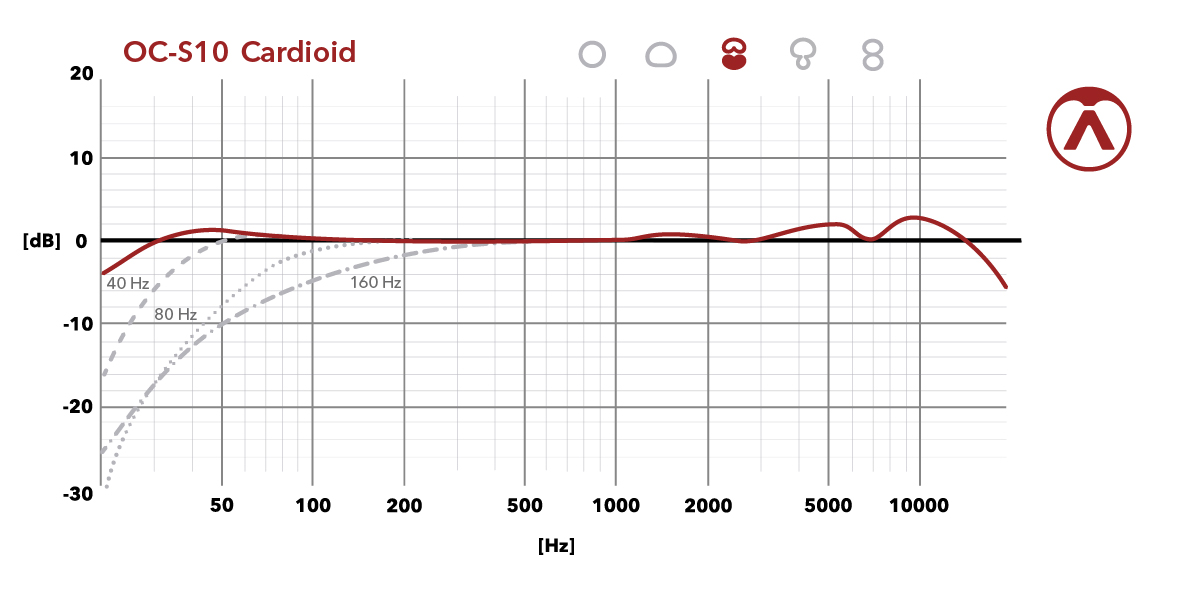

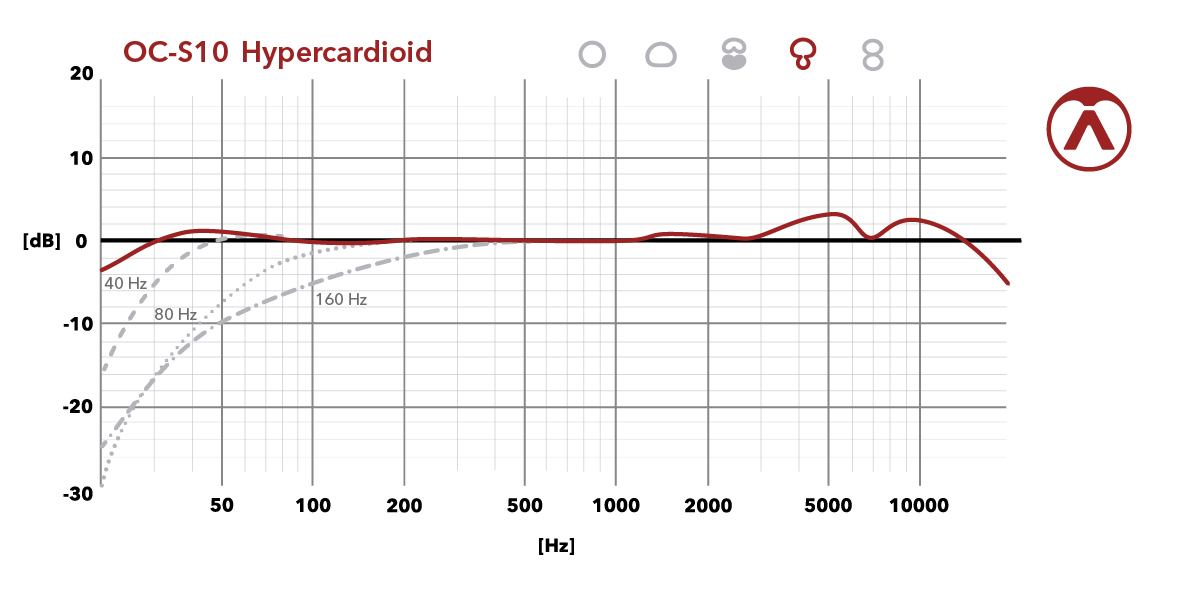

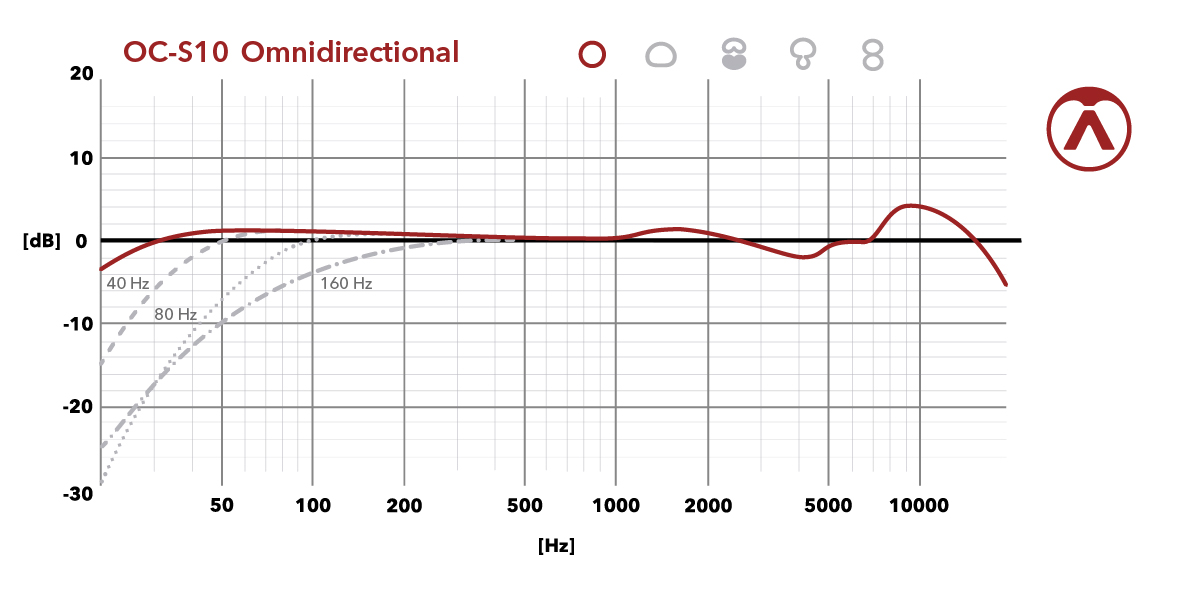

  • Analog low cut filter 40 Hz, 80 Hz, 160 Hz (all second order)
  • Switchable pad -10 dB, -20 dB
  • Impedance 108 Ω (symmetrical)
  • Load impedance > 1 kΩ
  • Supply voltage 48 V (<2.5 mA)
  • Connectors 2x XLR 3 pin
  • Dimensions 63 x 63 x 205 mm
  • Weight 690g
