THE MIC WITH ENDLESS SWEET SPOTS
True Condenser Instrument Microphone
- Free shipping
- Up to 5 years warranty
- Secure payment method
Reviews
Videos
A new angle on great sound.

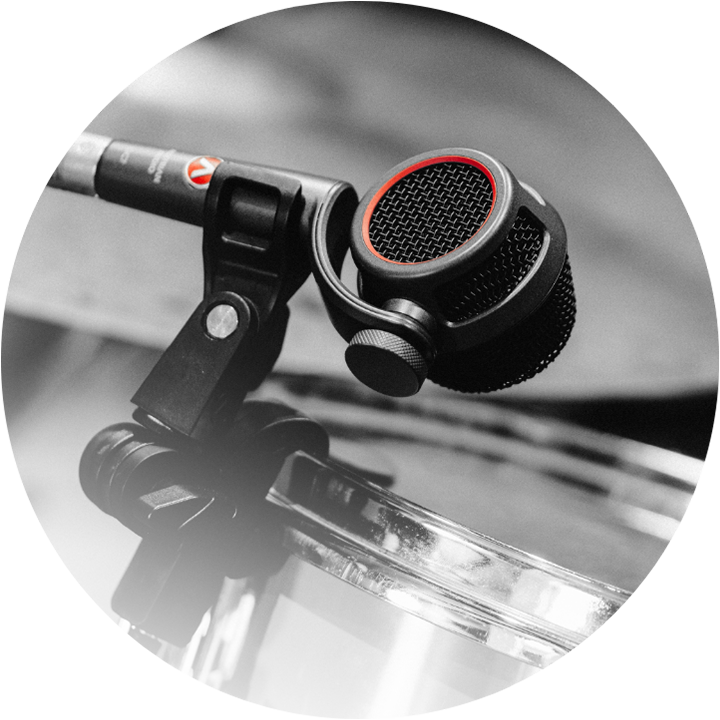

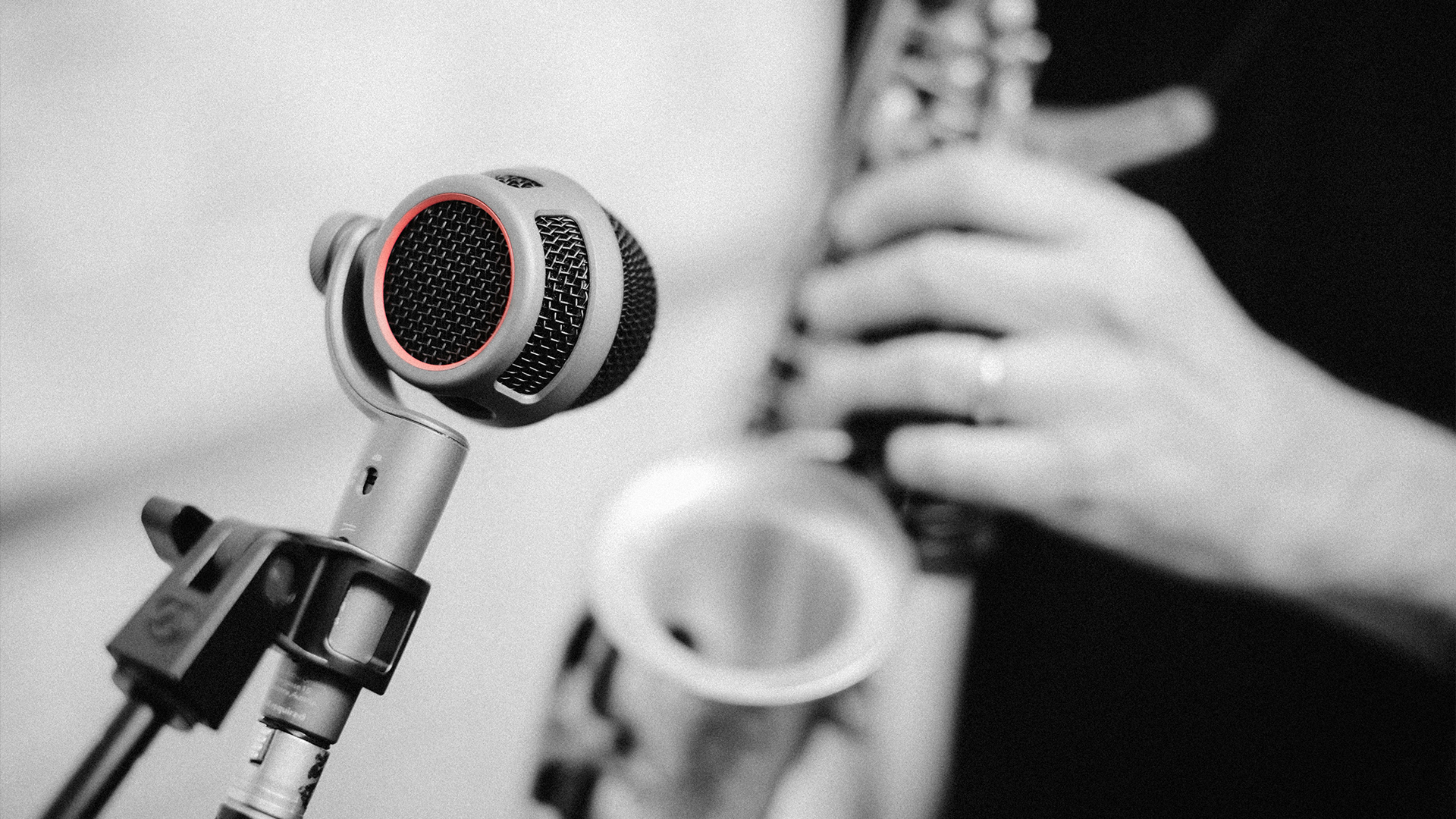

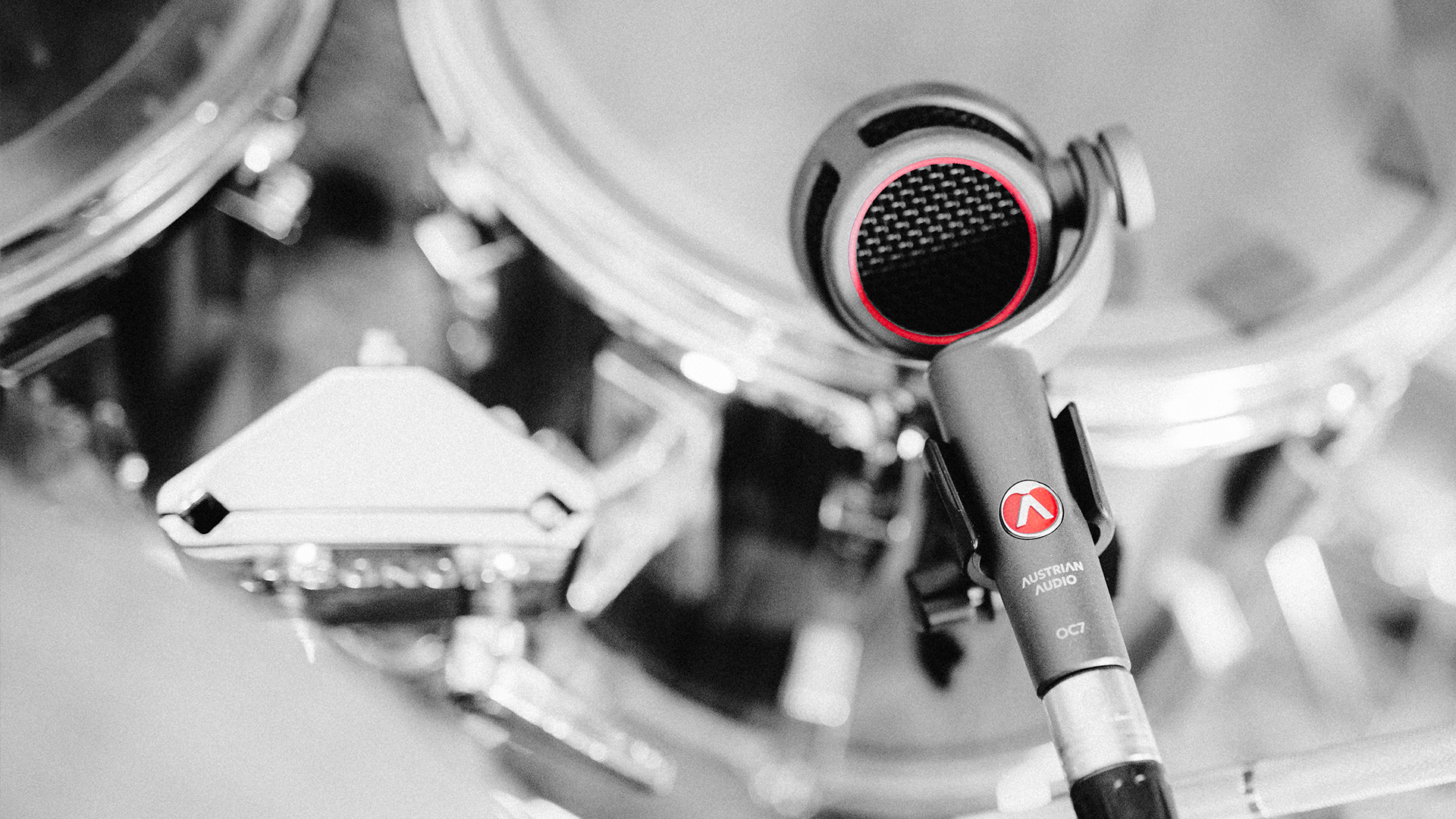

The OC7 translates Austrian Audio’s superior true condenser technology and sonic signature into a specialized design for close-miking instruments, drums and amplifiers. Our proprietary OCC7 capsule gives the OC7 a wide frequency response and high SPL resistance, so you can record everything from acoustic guitar to snare drums with clarity and nuance.
The microphone’s original swivel joint design offers 220º rotation for maximum flexibility and accuracy in even the tightest spaces. Like any good instrument microphone, the OC7 can also take a direct hit from a drumstick and not miss a beat thanks to its ultra-durable metal enclosure. Simple and reliable, the OC7 will inspire you to capture recordings from a new perspective.
The heart of the OC7
At the heart of the Austrian Audio CC8 microphone beats the newly-developed OCC7 small-diaphragm condenser capsule. Inspired by the legendary CK1, the OCC7 delivers all the benefits of that classic design updated to meet the demands of today. Shaped by the past; built for the future.
The OCC7 capsule and transformerless output gives the OC7 a remarkably linear frequency response, handling extremely high sound pressure levels (SPL) of up to 154 dB (160 dB with pad), without distorting.
Made in Vienna. Again.
Awards
Technical Specifications
- Directional characteristic Cardioid
- Frequency range 20 Hz - 20 kHz
- Sensitivity 10 mV/Pa
- Equivalent noise level 19 dB SPL(A)
- Max. SPL 154 db SPL (> 160 dB SPL with pad)
- Low cut filter 40 Hz (2nd order), 80 Hz (2nd order)
- Switchable pad -10 dB
- Impedance 275 Ω (symmetrical)
- Load impedance > 1 kΩ
- Supply voltage 48 V (< 2 mA)
- Main connector XLR 3 pin
- Dimensions 147 x 82 x 54 mm
- Weight 275 g
